How to measure for a FEGO screen
Two numbers, taken inside the frame. Width first, then height.
Measure the width
Run the tape across the opening, from the inside face of one side of the frame to the other. Write it in inches.
Measure the height
From the floor to the underside of the top of the frame. Garage floors slope, so measure at both sides and keep the larger number.
Find the size in the table
Look for the row whose range holds your two numbers. If you are between sizes, take the larger screen.
Garage doors
Garage openings each FEGO size fits

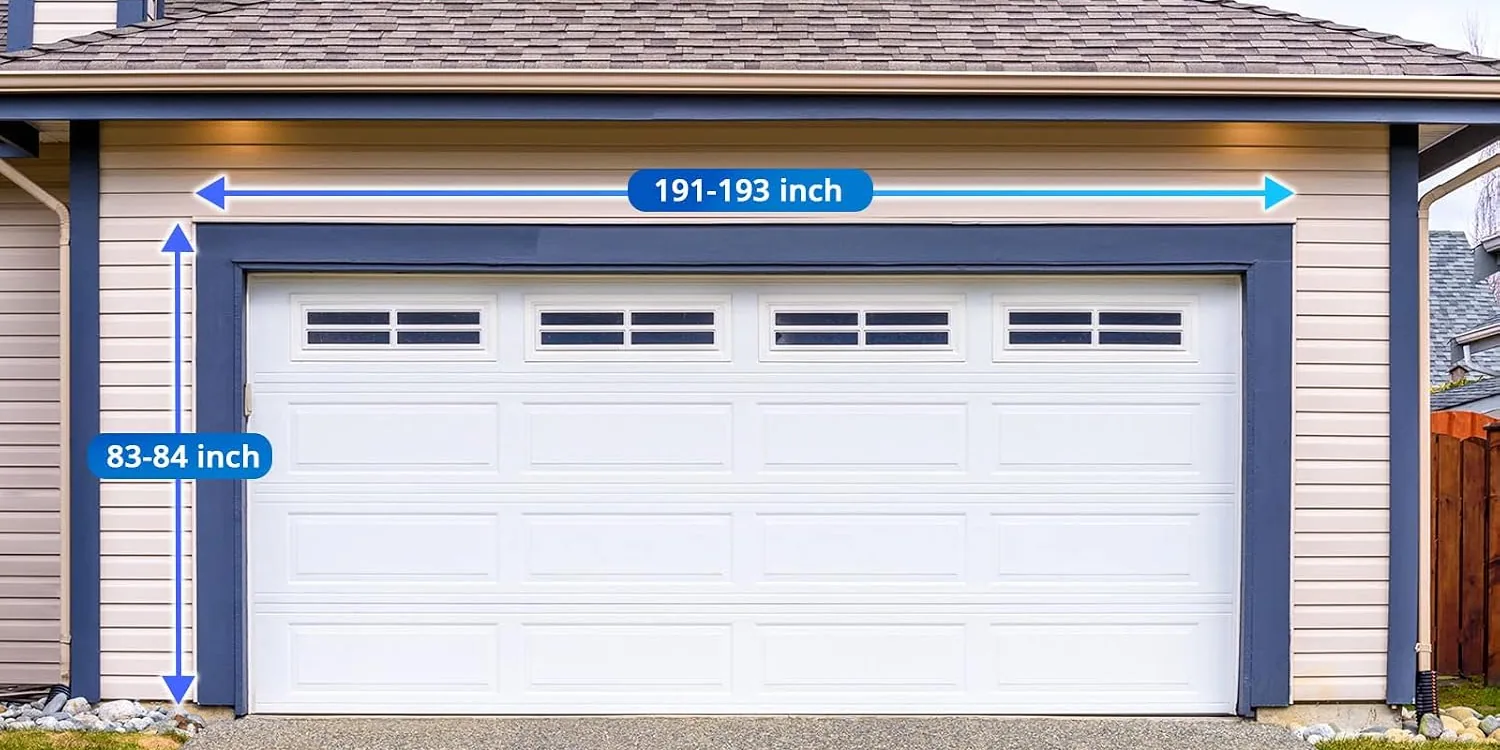

Where the tape goes
Width is the clear opening between the inside faces of the frame. Height runs from the floor to the underside of the header.
The drawing shows a 16 x 7 ft door: 191 to 193 inches wide and 83 to 84 inches tall.
| Named size | Opening width | Opening height | Screen itself | Versions and prices |
|---|---|---|---|---|
| 8 x 7 ft | 95 to 97 in | 83 to 84 in | 8.3 x 7.15 ft | Grey garage screen $52.99 Privacy garage screen $43.69 Sliding garage screen $59.84 Winter garage curtain $49.99 |
| 8 x 9 ft | 95 to 97 in | 107 to 108 in | 8.3 x 9.15 ft | Privacy garage screen $26.16 Sliding garage screen $66.49 |
| 9 x 7 ft | 107 to 109 in | 83 to 84 in | 9.3 x 7.15 ft | Garage screen $35.14 Grey garage screen $34.19 White garage screen $53.99 Sliding garage screen $60.79 Winter garage curtain $49.99 |
| 9 x 8 ft | 107 to 109 in | 95 to 96 in | 9.3 x 8.15 ft | Garage screen $49.99 White garage screen $31.34 Privacy garage screen $27.54 Winter garage curtain $52.99 |
| 10 x 8 ft | 120 to 122 in | 95 to 96 in | 10.3 x 8.15 ft | Garage screen $47.49 |
| 12 x 7 ft | 143.5 to 145.5 in | 83 to 84 in | 12.3 x 7.15 ft | Garage screen $65.99 |
| 12 x 8 ft | 143.5 to 145.5 in | 95 to 96 in | 12.3 x 8.15 ft | Garage screen $69.99 |
| 15 x 7 ft | 179 to 181 in | 83 to 84 in | 15.3 x 7.15 ft | Garage screen $69.99 |
| 15 x 8 ft | 179 to 181 in | 95 to 96 in | 15.3 x 8.15 ft | Garage screen $45.11 |
| 16 x 7 ft | 191 to 193 in | 83 to 84 in | 16.3 x 7.15 ft | Garage screen $49.99 Grey garage screen $59.99 Privacy garage screen $49.99 Winter garage curtain $56.99 |
| 16 x 8 ft | 191 to 193 in | 95 to 96 in | 16.3 x 8.15 ft | Garage screen $69.99 Privacy garage screen $53.19 Winter garage curtain $69.99 |
| 17 x 8 ft | 203 to 205 in | 95 to 96 in | 17.3 x 8.15 ft | Garage screen $69.99 |
| 18 x 7 ft | 215 to 217 in | 83 to 84 in | 18.3 x 7.15 ft | White garage screen $47.49 Winter garage curtain $69.99 |
| 18 x 8 ft | 215 to 217 in | 95 to 96 in | 18.3 x 8.15 ft | Winter garage curtain $69.99 |
-
Black mesh
FEGO Magnetic Garage Door Screen
Black fiberglass mesh for a one-car or two-car garage: walk through the magnetic seam, roll it up when the car comes in.
from $35.14 Order Your Size on Amazon -
Silver-grey, one-way view
FEGO Privacy Garage Door Screen
Silver-grey mesh with a reflective outer face: you see out, the street sees a blur, and the air still moves.
from $26.16 Order Your Size on Amazon
Entry doors
Door sizes and the screen that covers them
Door screens and door curtains are named by the door they fit. The mesh screen is 2 inches wider and 1 inch taller than that door. The thermal curtain is 2 inches wider and 2 inches taller.
What the door size means

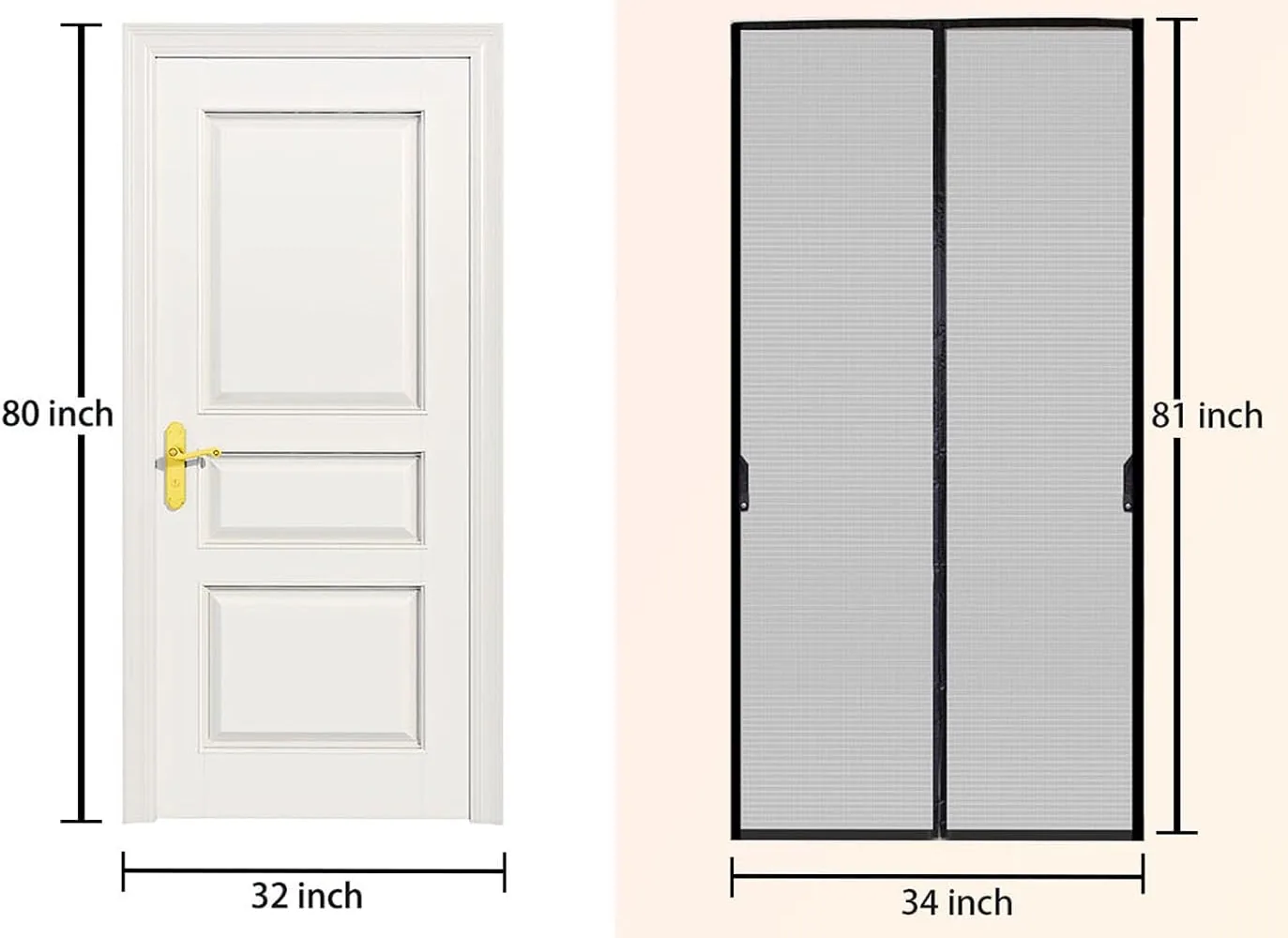

A 32" x 80" door takes the 34" x 81" screen. The mesh is wider and taller than the door, so it overlaps the frame all round.
| Door opening | What fits, its own size and price |
|---|---|
| 30" x 80" | Screen door 32" x 81", $14.24 White screen door 32" x 81", $19.99 Window thermal curtain 32" x 82", $35.99 |
| 30" x 82" | Screen door 32" x 83", $13.52 |
| 32" x 80" | Screen door 34" x 81", $16.99 Thermal curtain 34" x 82", from $28.99 Window thermal curtain 34" x 82", $35.99 |
| 32" x 82" | Screen door 34" x 83", $19.99 |
| 34" x 80" | Thermal curtain 36" x 82", $29.99 Window thermal curtain 36" x 82", $35.99 |
| 34" x 82" | Screen door 36" x 83", $20.99 |
| 36" x 80" | Screen door 38" x 81", $12.34 |
| 36" x 82" | Thermal curtain 38" x 84", from $29.99 Window thermal curtain 38" x 84", $35.99 |
| 36" x 96" | Screen door 38" x 97", $14.24 |
| 38" x 80" | Screen door 40" x 81", $19.99 |
| 38" x 82" | Screen door 40" x 83", $14.24 |
| 72" x 80" | Thermal curtain 74" x 82", from $35.99 Window thermal curtain 74" x 82", $39.99 |
Measuring questions
How do I measure a garage door for a screen?
Measure the opening inside the frame, width first, then height. A 16 x 7 ft FEGO screen fits openings 191 to 193 inches wide and 83 to 84 inches tall.
Should a garage door screen be bigger than the opening?
Yes, and FEGO screens already are. A 16 x 7 ft screen measures 16.3 x 7.15 ft, so the mesh overlaps the frame. Order by the opening size.
-
Black mesh
FEGO Magnetic Screen Door
A fiberglass mesh for a single entry door: hands-free through the middle, nine door sizes from 30" x 80" to 36" x 96".
from $12.34 Order Your Size on Amazon -
Black or grey
FEGO Thermal Insulated Door Curtain
A padded door curtain for winter: Oxford fabric over a thick cotton filling, magnetic seam, black or grey.
from $28.99 Order Your Size on Amazon
